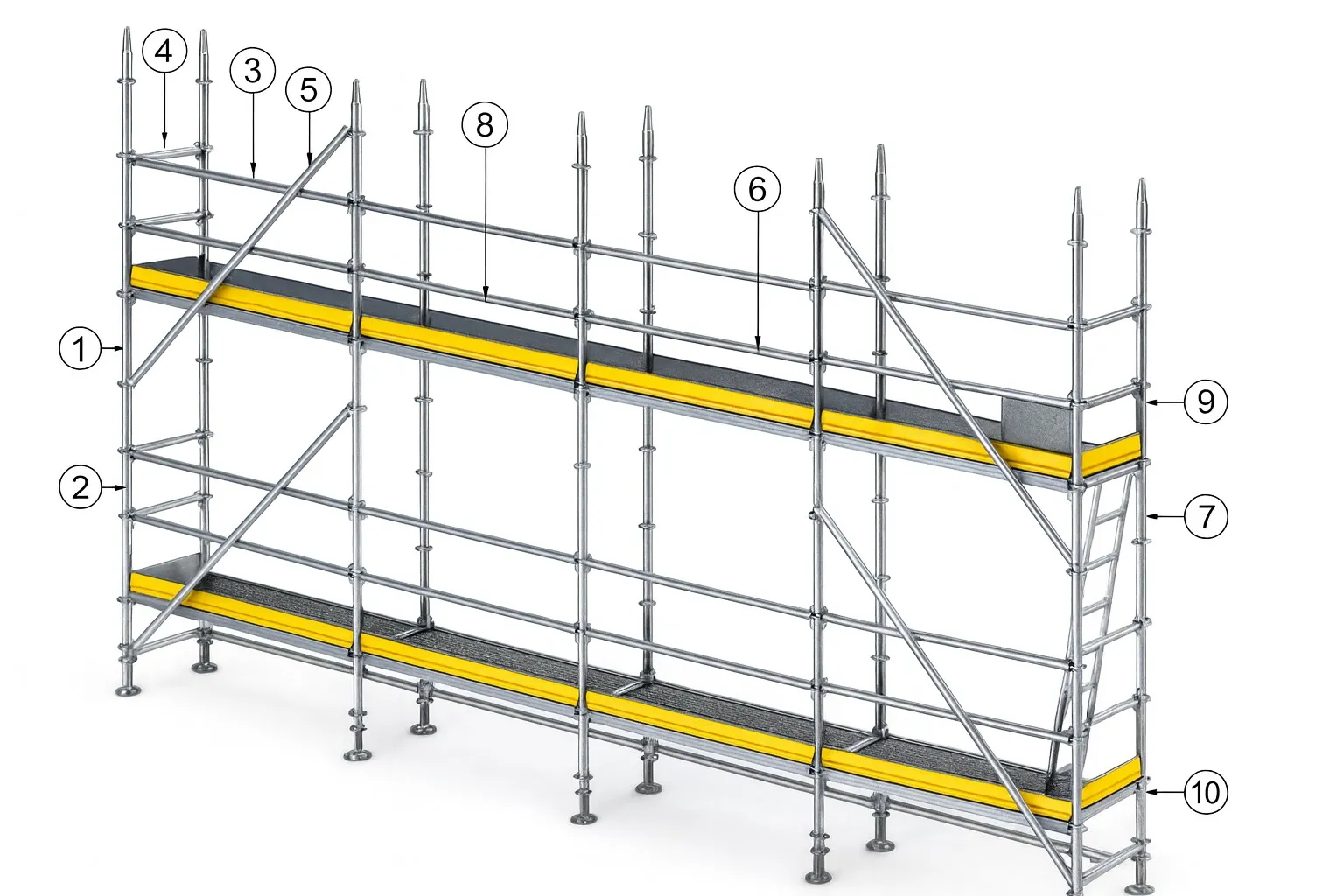

Flanged Facade Scaffold System

The Flanged Type Safety Scaffold System, produced by Sayha Scaffold, is a modern solution that meets the highest standards of occupational safety and quality. All our productions comply with TS EN 12810-1, TS EN 12810-2, TS EN 12811-1, and TS EN 12811-2 standards and are TSE certified.

The flanged scaffold system can be used in various applications such as stair towers, facade scaffolds, and formwork scaffolds. Its ease of assembly and disassembly, robust structure, and adaptability to different architectural solutions make it a reliable partner for professional projects.

System Features

» Flanges with 8 mm thickness are used at 50 cm intervals on vertical load-bearing elements.
» Horizontal connections feature ledger elements ranging from 50 cm to 300 cm in length.
» Each module can use two wooden or metal platforms.
» Metal ladders provide safe and easy passage between floors.
» Assembly is carried out on base supports with precise height adjustment.
» The system is secured to the facade using adjustable special connection elements.
» All components used in the system are made from Ø48x3 mm TSE-certified steel pipes that have passed mechanical compliance tests.
» Welded joints are performed with gas-shielded welding by certified welders.

Application Areas

The Flanged Scaffold System is safely used for:
• Thermal insulation, painting, facade cladding, and installation works of buildings,
• Industrial projects, metro, tunnel, bridge, and highway constructions,
• Elevator shafts and confined areas,
• Formwork scaffolds, volume scaffolds, and stair tower solutions.

Thanks to its flexible modular structure, it can be easily applied on square, rectangular, circular, or recessed facades.
